Seth Thomas Pocket Watch Model 20
0-SIZE MODEL No. 20

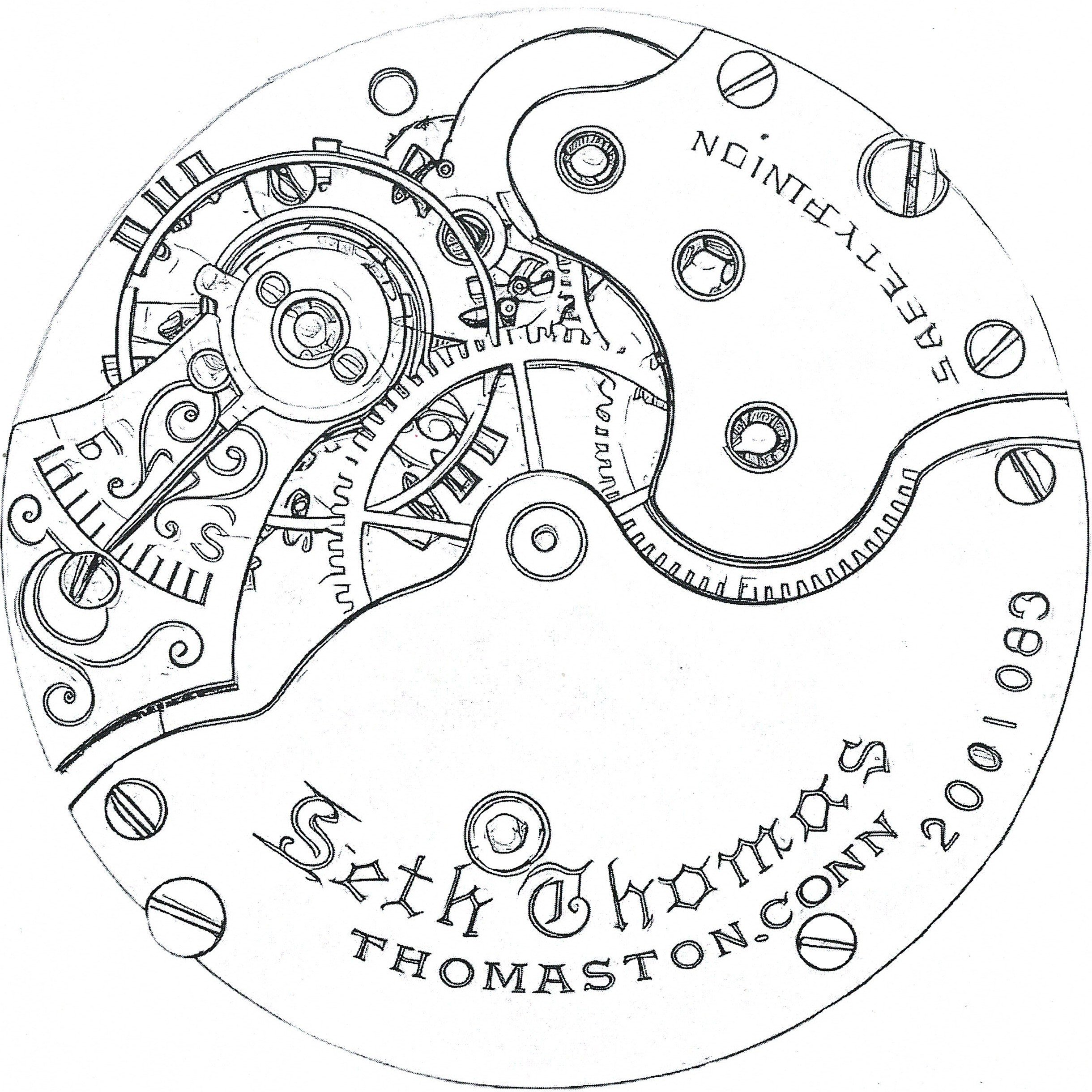

Seth Thomas 0-size Model 20 is represented in the Ehrhardt American Numbered Drawings as EA 823 and can be identified through the use of the drawing below:
The 0-size Model 20 was the only 0-size model that Seth Thomas manufactured, and it was produced in a very limited quantity; but filled the bill in demonstrating the Seth Thomas commitment to diversity and beauty in their product lines. The 0-size Model 20 joined the 18-size Model 2 and 6-size Model 14 in having a split 3/4 top plate. While its underlying orientation is hunting cased it is not unusual to see 0-size conversion dials used to case the movements as open-face without a seconds bit.
Click this link to open the Model 20 Photo Album in a new tab.
Seth Thomas Model 20 Movement Markings
There was only one style of standard, non-private label, movement markings used on Seth Thomas Model 20 pocket watches.
Movement Marking Style 1 - Documented serial number range 2000628 - 2004551.
You can support and assist our Seth Thomas Fan Space Research Project by uploading photographs of your Seth Thomas pocket watches to the Pocket Watch Database. Pocket Watch Database accounts are free of charge, and you will have full access to the photographs and descriptive information that you share, and you will have the ability to edit, change, or delete the information and photographs that you submit as you see fit.

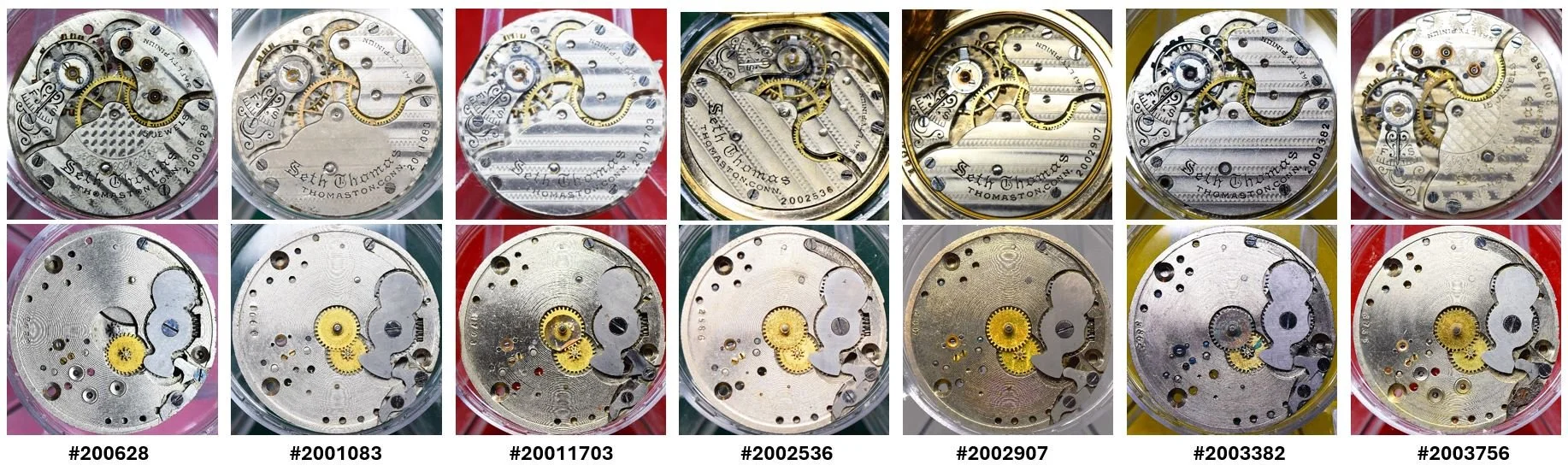

At the time of its purchase, Model 20 movement #2003756 had serious water damage and a broken center wheel staff. In the process of exploring this damage it was recognized that the pillar plate has a different shape in the area of the winding pinion than other Model 20 movements. In earlier numbered movements the winding pinion was visible through a squared off opening in the pillar plate. The pillar plate on movement #2003756, does not have that squared off opening and the winding pinion is not visible. See photographs below to compare the pillar plates of Model 20 movements to determine approximately when this design change was made by the Seth Thomas factory.
Select Illustrated Grades within Model 20
Seth Thomas Grade 1
7 Jewel - Model 20
This 1902-1907 Seth Thomas 0-size hunting Model 20 pocket watch was manufactured with a nickel finished 3/4 plate, 7 jewels, and it is non-adjusted. The movement is stem wound and pendant set, with a Breguet hair spring, and plain/simple regulator. Its serial number is 2001720, and its grade is Seth Thomas numbered grade 1. The movement is signed “Seth Thomas Thomaston, Conn.”.
The movement is fitted with a 0-size Seth Thomas Roman dial with ring minute track and red five-minute marginals, fitted with Seth Thomas blued spade hands 0-size.
The movement is cased in a 0-size Illinois Watch Case Co. Adonis 20-years gold filled watch case, serial number 814362. Patented 1905.
Seth Thomas Grade 3
15 Jewel - Model 20
This 1902-1907 Seth Thomas 0-size hunting Model 20 pocket watch was manufactured with a nickel finished 3/4 plate, 15 jewels, and it is non-adjusted. The movement is stem wound and pendant set, with a Breguet hair spring, and plain/simple regulator. Its serial number is 2001213, and its grade is Seth Thomas numbered grade 3. The movement is signed “Seth Thomas Thomaston, Conn.”.
The movement is fitted with a 0-size Seth Thomas Roman dial with ring minute track and red five-minute marginals, fitted with Seth Thomas blued spade hands 0-size.
The movement is cased in a 0-size Keystone Watch Case Company 25-year 14k gold-filled Boss Scale Crown hunting watch case, serial number 7375323.
Seth Thomas Grade 9
17 Jewel - Model 20
This 1902-1907 Seth Thomas 0-size hunting Model 20 pocket watch was manufactured with a nickel finished 3/4 plate, 17 jewels, and it is non-adjusted. The movement is stem wound and pendant set, with a Breguet hair spring, and plain/simple regulator.
